General Wire Transmitters

General Wire Transmitters

Locating buried utilities used to be tough. Not anymore! With the powerful 5 watt Hot Spot Transmitter, location is easier than ever. More power means more signal to locate. Choose one of 4 frequencies - 1KHz, 8KHz, 33KHz or 65KHz. You can select the frequency and power that best suits your application.

Locate via direct connection using the cords and ground stake. Simply attach the transmitter leads to both ends of the pipe, or if the other end of the pipe is not accessible, use the ground stake to complete the circuit. Or place the transmitter over the pipe and use induction mode, or place the optional clamp around the pipe to energize the line.

The transmitter's LCD graphic display with auto backlight lets you quickly check connectivity and line resistance to make sure you're transmitting efficiently for a stronger signal for easier tracking and locating. The display also indicates power output, frequency, and battery level.

In tandem, the Hot-Spot pipe locator and the matching Hot Spot Transmitter finds buried utilities quickly and easily. The combination of the Hot Spot pipe locator and Hot Spot transmitter takes the confusion out pipe and utility locating. They are so easy to use, you'll find locating to be faster and more productive. That means more profitability for your business.

Transmitters

Model Numbers:
185670:

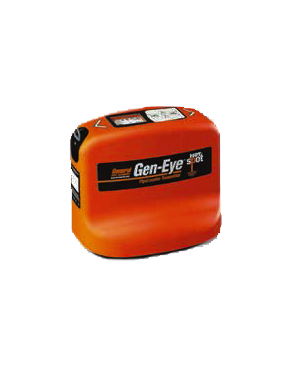

GL-175 5 Watt Gen-Eye Transmitter with Cables & Ground Stake

In tandem, the Hot-Spot pipe locator and the matching Hot Spot Transmitter finds buried utilities quickly and easily. The combination of the Hot Spot pipe locator and Hot Spot transmitter takes the confusion out pipe and utility locating. They are so easy to use, you'll find locating to be faster and more productive. That means more profitability for your business

Specifications:

Line/Utility Frequencies: 1KHz, 8KHz, 33KHz, 65KHz

Output: 5 Watts with 5 output settings

Weight: 8 lbs.

Batteries: 10 D-cell alkaline (Approximately 100+ hours of life)

External Ports: Mini USB

Dimensions: 10" H x 12" L x 8" W

Operating Temperature Range: -4° F to 122° F

Hot Spot Transmitter Literature PDF

Hot Spot Transmitter Operating Instructions PDF

Price $2441.00

Free Freight - 48 States

Transmitters

Model Description Price

# 185670 GL-175 5 Watt Gen-Eye Transmitter with Cables & Ground Stake $2441

To buy the GL-100 Locator, Click Here

Return to Locator Packages
