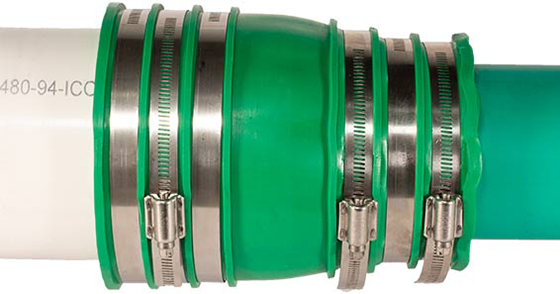

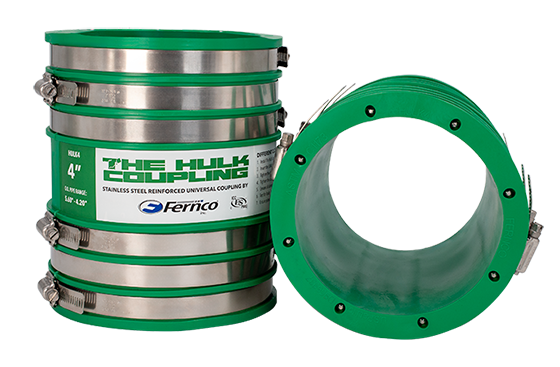

Fernco Hulk Coupling

Fernco Hulk Coupling

Hulk Coupling

Universal Sewer and Drain Repair Coupling.
How it Works:
One coupling per nominal pipe size connects:

Clay
Concrete
Ductile Iron
Orangeburg
Duriron
Cast Iron
Steel
Plastic

Key Features:

Unmatched Quality & Performance: Built to last the life of the plumbing system, Fernco couplings are made from elastomeric polyvinyl chloride for a strong, leak-proof fitting that's resistant to chemicals and sewer gases.

Connect Various Pipe Types: One universal coupling per nominal size connects most pipe materials

Specs & Codes: Complies with IPC, UPC, ASTM C 1173 AND CSA B602

Heavy Duty Construction: Stainless Steel Ribbed Construction with corrosion resistant high torque 316 series stainless steel clamps

Patented Design: U.S. Pat. No. D956937

Hulk Coupling Salesheet
Hulk Coupling Trifold Brochure
Hulk Engineering Spec Sheet

Starting at $99.95

Free Freight - 48 States

Fernco Hulk Coupling

Model Size Dimensional Range Price

# HULK4 4" 5.60" - 4.20" $99.95

# HULK5 5" 6.70" - 5.30" $119.95

# HULK6 6" 8.00" - 6.20" $149.95

# HULK8 8" 10.15" - 8.40" $199.95

# HULK10 10" 12.75" - 10.50" $229.95

# HULK12 12" 15.30" - 12.50" $249.95

HULK4 HULK5 HULK6 HULK8 HULK10 HULK12

COUPLING RANGE 5.60" - 4.20" 6.65" - 5.30" 8.00" - 6.20" 10.15" - 8.40" 12.75" - 10.50" 15.30" - 12.50"

CLAY 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

Eastern Standard Clay 5.23 6.31 6.31 7.44 9.84 11.99 14.36

Pacific Clay 5.36 5.36 7.93 9.93 12.88 15.30

Gladding McBean Clay 5.31 5.31 7.87 12.47 14.52

Building Products Clay 5.20 7.75 9.80 12.40 14.40

Can Clay Denlok 7.64 9.88 13.82

Mission Clay 5.37 5.37 6.65 6.65 7.68 9.90 12.43 14.46

Mission No Dig 13.50

Logan Clay 4.92 7.52 9.70 12.08 14.36

CAST AND DUCTILE IRON 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

Ductile Iron 4.80 6.90 9.05 11.10 13.20 15.30

Duriron 4.76 6.69 6.69 9.02 11.25 13.25

Extra Heavy Cast Iron 4.50 5.50 5.50 6.50 6.50 8.62 10.75 12.75 12.75

Service Weight Cast Iron 4.30 5.30 5.30 6.30 6.30 8.38 10.50 12.50 12.50

No Hub Cast Iron 4.38 5.30 5.30 6.30 6.30 8.38 10.56 12.50 12.50

STEEL 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

Stainless Steel 4.50 5.563 5.56 6.625 6.625 8.625 10.75 12.75 12.75

Steel 4.50 5.563 5.56 6.625 6.625 8.625 10.75 12.75 12.75 14.00

COPPER 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

Rigid Copper (TYPES K,L,M) 5.125 6.125 8.125

PLASTIC 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

SDR-35 ASTM-3034 4.22 6.28 6.28 8.40 10.50 12.50 12.50 15.30

PS-46, PS-75, PS-115 (ASTM-F679)

Thinwall Plastic (S&D) 5.30 5.30 6.27 6.27 8.16

Plastic Schedule 40, 80, 120 4.50 5.563 5.56 6.625 6.625 8.625 10.75 12.75 12.75 14.00

HDPE Pipe (DIPS) 4.80 6.90 9.05 11.10 13.20 15.30

HDPE Pipe (IPS) 4.50 5.56 5.56 6.63 6.63 8.63 10.75 12.75 12.75 14.00

ULTRA RIB™ 8.81 11.02 13.10

ULTRA CORR™

C900 AND C905 4.80 6.90 9.05 11.10 13.20 15.30

CONTECH A-2000™ 4.30 6.42 6.42 8.60 10.79 12.80

Royal Kor Flo™ 8.60 10.78 12.79

ARMCO TRUSS 9.40 11.80 14.10

CONCRETE 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

CONCRETE
Dimensions will vary by manufacturer and class of pipe
5.50

MIN

5.50

MIN

6.50

MIN

6.50

MIN

7.75

MIN

10.00

MIN

12.45

MIN

14.50

MIN

ORANGEBURG 4" 5" 4" 5" 6" 4" 5" 6" 6" 8" 10" 12" 10" 12" 14" 15"

Orangeburg Bituminous Fiber
(Actual sizes may be larger than stated size) 4.64 5.82 6.96 9.14
