SiBore Horizontal Boring Drill

SiBore® microBore Drill

microBore Horizontal Drill

For cable & Fiber Optic installers. Can bore up to 24 ft. SiBore™ Drill allows you to bore horizontally under a sidewalk in less than 5 minutes without a muddy mess. Add extensions to bore under wider surfaces You can bore at different angles.

SiBore™ Drills are fast and lightweight sideways boring augers ideal for landscapers, sprinkler system installers, plumbers, electrical contractors, trenchers, and tool rental companies. The SiBore™ Drill is compact enough to be thrown in the trunk on the way to the job site. Powered by a Honda multi-position, 4-stroke engine. Boring 1″ X 24′ holes in less than five minutes. No mud and water in the trench. No need to replace concrete, just go under it. Add extensions to bore under wider surfaces up to 24 feet.

Description:

Choose Honda GX35 or Makita 40V MAX XGT power.

Bores 1" x 24'

Auger Sizes: 1 in. Boring Head

Max Drilling Torque 55 ft. lbs.

Unit Weight 38 lbs. without extension rods (Honda)

Enclosed, Grease-lubricated, Spur Gear Reduction Box (Honda)

Makita comes with power head, one battery and charger

SB115 Includes:

(2) 36 in. Drill Rods with 3 couplings
(1) Swivel Cable Puller
(2) 1 in. Boring Head
(1) SiBore Drill
(1) Carry Case

SB215 Includes:

(8) 36 in. Drill Rods with 9 couplings
(1) Swivel Cable Puller
(2) 1 in. Boring Head
(1) SiBore Drill
(1) Carry Case

SB215 microBore - Honda GX35 Engine

SB215e microBore - Makita 40V MAX XGT

Starting at $2,700.00

Free Freight - 48 States

Choose Honda or Makita Power

HONDA ENGINE NOT FOR SALE IN CALIFORNIA.
SEE WHY.

SiBore® Microbore with 1" Boring Head, (2) 36" Rods

Part # Description Price

# SB115 Honda GX35 powered, (2) 36" Rods $2,700.00

# SB115e Makita 40V MAX XGT powered*, (2) 36" Rods $2,700.00

*The XGT system equals a 36cc gas engine while being lighter and exhaust free.

SiBore® Microbore with 1" Boring Head, (8) 36" Rods

Part # Description Price

# SB215 Honda GX35 powered, (8) 36" Rods $4,050.00

# SB215e Makita 40V MAX XGT powered*, (8) 36" Rods $4,050.00

*The XGT system equals a 36cc gas engine while being lighter and exhaust free.

SiBore™ Drill Tips

Keep at 1/2 - 3/4 Throttle.

Remember to back ream often to prevent it from getting stuck.

Prepare a "Runway" to get your auger at the correct depth and direction.

When using the SiBore Drill MicroBore with the Makita Battery, DO NOT use the reverse setting. It could unscrew the couplings.

SB215 is Honda Powered

SB215e is Makita Powered. Comes with power head, one battery and charger

Carry Case Included

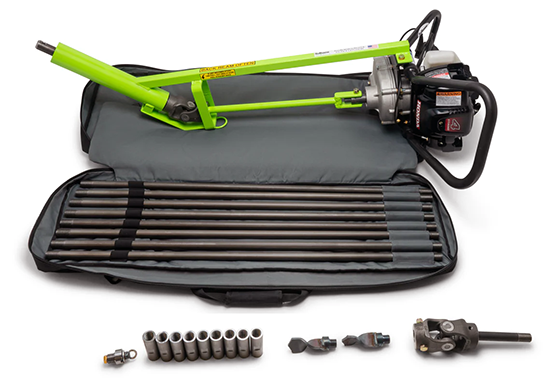

SB215 Package (Honda Powered)

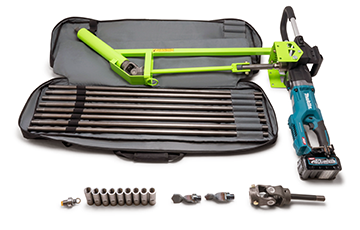

SB215e Package (Makita Powered)

Return to Horizontal Boring & Drilling

Not sure which Horizontal Boring Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
