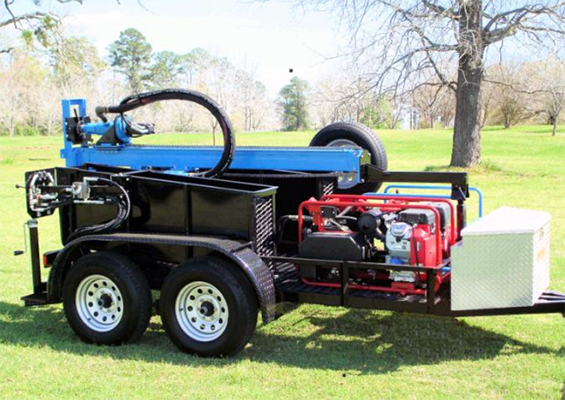

LS300+ Hydraulic Trailer Rig Package

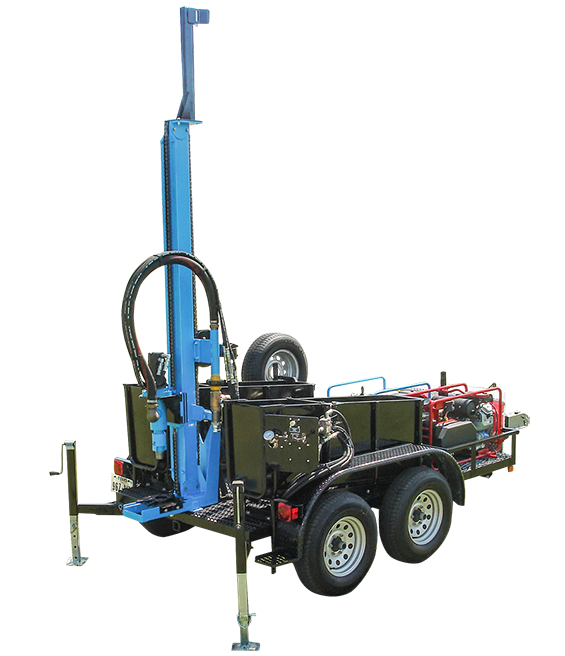

	LS300T+BRP Hydraulic Trailer Rig Package This trailer mounted rig offers the best performance of the Lone Star line. Complete with tool box, leveling jacks and racks for 300 feet of Mayhew jr drill pipe. Anchor kit allows pushing beyond the weight of the trailer for effective roller cone use in rock. Hydraulic power source with heat exchanger and fan is available with Honda 20HP gas or Kohler 24HP liquid cooled diesel engines. Gorman Rupp mud pump options are 13HP Honda gas or 10HP Hatz diesel. At a Glance: Drilling Depth: 300 ft Borehole Diameter: 6 in Pull/Push-Back Force: 5,000 lbs Operating Weight: 4,750 lbs Max Drillng Torque: 665 ft-lbs Speed: 95 rpm at 10 GPM Hydraulic Power Source: Honda 20 hp or Kohler 24 hp Hydraulic System: 10 GPM at 3,000 psi Hydraulic Reservoir: 5 gal Mud Pump: Honda 13 hp or Hatz 10 hp Max Head: 190 ft Max Flow: 200 GPM Discharge/Suction: 2 in Frame: Heavy-duty welded steel Transportation: 20 foot container, fully assembled. Optional Components (Call to Order): Roller Cone bits Drill Collars Down-the-hole hammer package Drill Rig Package Includes: 3,000-psi hydraulic system Three 2-inch-diameter mud hoses (one 10-foot suction and two 12-foot discharge/bypass) 300 feet of 2-inch diameter Mayhew Jr. Drill Pipe with breakout lugs Load-bearing side inlet swivel with manual J-latch breakout tool. Casing flush tool Toolbox and spare parts 4- and 6-inch step drag bits 4-, 6- and 7-inch reamers LS300T+BRP Owners Manual LS300T+BRP Operators Manual	Starting at $53,487.00 Click Here for Freight Information Choose Gas or Diesel LS300T+BRP Gas $53,487.00 USD LS300T+BRP-D Diesel $66,942.00 USD NOT FOR SALE IN CALIFORNIA. SEE WHY.

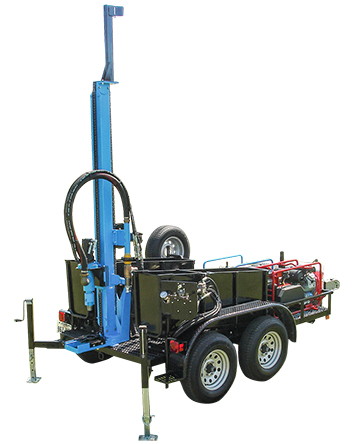

	Lone Star LS300T+BRP Hydraulic Trailer Rig Package (Gas or Diesel) Part # Description Price Lead Time # LS300T+BRP LS300T+BRP–GAS $53,487.00 Up to 4 months # LS300T+BRP-D LS300T+BRP–DIESEL $66,942.00 Up to 4 months
	The LS300T+ offers ultimate performance in a complete package. The drill features our most powerful hydraulics for drilling 6-inch boreholes up to 300 feet in any conditions, including hard rock. The robust hydraulic system generates up to 5,000 pounds of pull/push-back force to push beyond the trailer's weight. The drill's bypass flow system allows for precise control to achieve the desired push-down force, and a three-way ball valve enables the operator to quickly bypass the mudflow when adding pipe. The LS300T+ ships fully assembled in a 20-foot container with room for additional supplies.
	Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.

ORDER TODAY 1-800-504-7435
