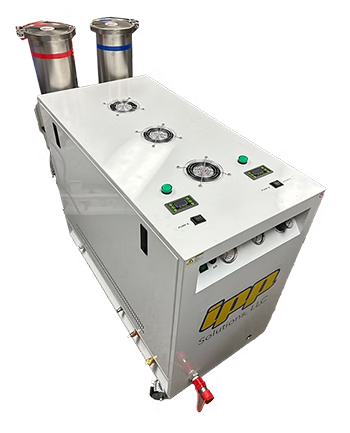

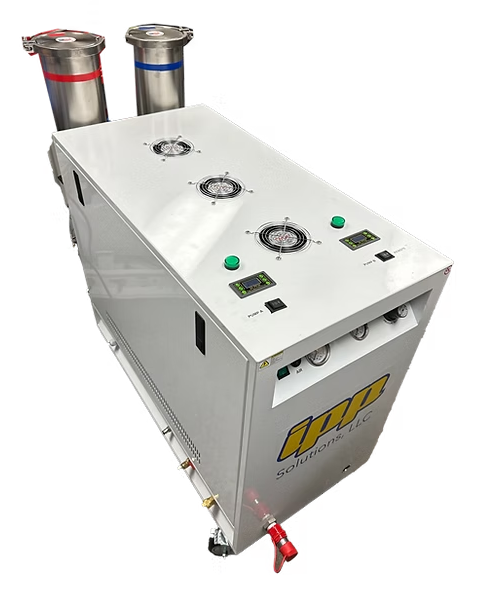

PipeCaster™ Pro MAX

	PipeCaster™ Pro MAX Engineered for Municipal & Industrial Demands: Built for high-output, heavy-duty trenchless rehabilitation projects across municipal utility systems, industrial facilities, plants, and large-scale infrastructure. The system uses commercial-grade components designed for long duty cycles and rugged field use. High-Performance Dual-Resin Pump System: The PipeCaster platform features a two-component resin pumping system compatible with polyurea, polyurethane, and epoxy chemistries. It includes internal rotary gear pumps and supports multiple mix ratios (1:1, 2:1, 3:1). Digital Control System for Precision & Efficiency: Equipped with a digital, pre-programmed control unit, offering: Digital speed control, Programmable material output, digital-controlled resin flow, Stable and even application rates. This ensures consistent coating thickness and high-quality results even on long pulls. 20-gallon steel tank on caster wheels for easy mobility across job sites. Integrated Resin Heating System: The PipeCaster system accepts integrated heating options to maintain ideal resin temperatures for cold-weather operation, viscosity management, and optimal spray atomization. See our Pipe Lining FAQs Wide Diameter Range: 2" to 24"+: The PipeCaster platform supports a broad range of pipe sizes, traditionally listed up to 24 inches internally, and scalable via MAX skids and accessories used for large-diameter SIPP work. This allows contractors to tackle everything from small residential laterals to large municipal mains and industrial pipelines. Internal & External Spray Technology: The system uses a sprayed-in-place coating method capable of both interior lining and exterior industrial spray applications depending on setup and resin type, enabling coating of pipes, tanks, manholes, structures, and specialty assets. Ultra Quiet & Oil-Free Air Compressor in Soundproof Cabinet is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 65 decibels of sound. Compressor motors have been designed to increase duty cycle and allow for longer continuous run times (i.e., may run continuously at 5.3 cfm @90 PSI for up to 4 hours, or intermittently 30-40 minutes at a time at 10.6 cfm @90 PSI). The Powerful Twin 2.0 HP motors operate at only 1680 RPM creating less noise, vibration, and wear. Increased duty cycle for longer continuous run times.	Price $78,500.00 Free Freight - 48 States
	PipeCaster™ Pro MAX Part # Pipe Diameter Hose Length Material Tanks Compressor Price 20001-MAXI 2" - 24" 500ft 2 x 3 gallons each 20 gallon $78,500.00
	Starter kit includes: 2 Pneumatic Spray Maxi Motor 5 Set Material and Pneumatic Air Supply Hoses 100 ft/ea Remote Control Pulling Device Toolbox with tools & Spare Parts	Specifications: Ultra Quiet, Oil-Free Pump Two pressure control gauges Female industrial "Push to Connect" quick connector Condor Pressure Switch Thermal Overload Protector 125 PSI Maximum Pressure 220v / 60 hz / Single Phase, Low Amp Draw (14 Amps) Fast tank fill time (150 Seconds), Quick recovery time (40 Seconds). Weight: 298 lbs. Dimensions: W 19" x L 38" x H 45 Motor: 300 Watt 2.5 HP Gear Motor 110V Pumps: Internal rotary gear pumps 3.5 gal/min Tanks: 2x 3.0 gal/ea Heater: 2 integrated flowthrough heater 1000W /110V with digital controller Meter: RPM Meter with digital display Power: 220V Wheels: 4" swivel wheels with brake Control: 2 dual port manifold speed control Viscosity: approx. 50 to 2500 cps FlowRate: approx. 0.5 to 3 gallon per minute Ratios: 1:1 by volume ratio standard, other ratios available
	Return to SIPP & CIPP Relining SIPP & CIPP Pipe Lining FAQ
