PipeCaster™ Pro Mini

	PipeCaster™ Pro Mini Ideal for professionals seeking a high-performance, quiet, and efficient pipelining system that delivers consistent results. See our Pipe Lining FAQs The PipeCaster™ Pro Mini Starter Kit is an ultra-quiet, powerful SIPP system for 2"- 4" pipe diameters, equipped with 150ft hose capability, making it perfect for both small and medium-sized projects. Its compact design and innovative features ensure optimal performance in tight spaces. This system is built for reliability with a 70/30 duty cycle and quick 3-minute tank refill time. Its programmable low-voltage control line offers precision and efficiency for various applications. The powerful 1.0 HP motor operates at only 1400 RPM creating less noise, vibration and creating less wear. The MP Series of Ultra Quiet Air Compressor Motors have been designed to increase dutycycle and allow for longer continuous run times (i.e. may run continuously at 1.5 cfm @90 PSI for up to 4 hours, or intermittently 30-40 minutes at a time at 3.0 cfm @90 PSI). The Motor/Pump is tested for a minimum pump life of 4000 hours before service. 30% more life before repair. The large 8.0 gallon steel air tank is internally coated with epoxy to prevent any corrosion. The cabinet has two latching doors that allow for easy access to the compressor and components. The two cabinet exhaust fans are used to remove the air from the cabinet to a cool working condition for the air compressor. The 4 caster wheels makes moving the air compressor from location to location very easy. The complete Soundproof Cabinet is 125 lbs. and made of a sturdy metal frame with 1/4" Acoustic Sound Proofing Foam insulation to reduce the noise by 30%.	Price $24,300.00 Free Freight - 48 States
	PipeCaster™ Pro Mini Part # Pipe Diameter Hose Length Material Tanks Compressor Price 20001-Mini 2" - 4" up to150ft 3 gallon 8 gallon $24,300.00

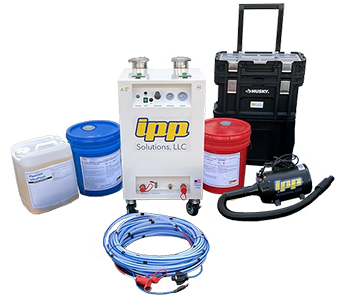

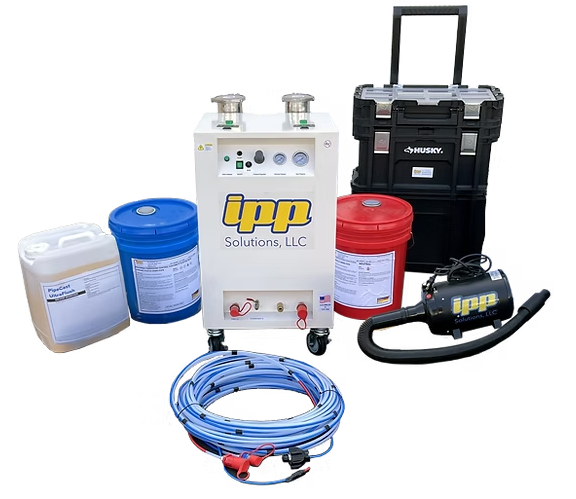

	Starter kit includes: 2 Pneumatic Spray Maxi Motor 1 Set Air-hoses in 6mm 25 feet 1 Set PVC hoses 8mm 25 feet 1 Toolbox with Tools Spare Parts	Specifications: Weight: Basic Pump 125 lbs. dry. Dimensions: H 32", W 20", H 21" Motor: CNC Motor with Gearbox Pumps: Internal rotary gear pumps Tanks: 2x 1.3 gal/ea Power: 110 V 15 A Wheels: 4", swivel wheels with brakes Control: 2 dual port manifold, digital speed control. Low voltage control line to applicator, programmable Viscosity: approx. 50 – 2000 cps, depending on material FlowRate: approx. 0.1 to >1 gallon per minute Ratios: 1:1 by volume ratio standard, other ratios available Non-ASME Air Tank 18 Month Limited Warranty Commercial Use: Refer to State & City Codes
	Return to SIPP & CIPP Relining SIPP & CIPP Pipe Lining FAQ
