PipeCaster Pro Standard SIPP System

PipeCaster™ Pro Standard

PipeCaster™ Standard Starter Kit

Versatile SIPP System for tackling a wide range pipelining projects. Versatile 2”–24” Pipe Coverage.

Designed to handle a wide range of pipe diameters, from small laterals up to 24″ mains, making it a true all‑around SIPP solution for residential, commercial, and municipal jobs.

Professional Two‑Component Spray System: Supports 1:1, 2:1, and 3:1 ratios for pumping epoxies, polyurethanes, and polyureas – giving you the flexibility to choose the optimal material and mix for every application.

Balanced Power & Portability: Combines a 10‑gallon internal compressor with a compact cabinet and EZ‑Ride casters, offering professional performance without sacrificing mobility.

User‑Friendly Controls: Adjustable volume dispenser with digital speed control allows technicians to dial in material output precisely and intuitively, reducing waste and improving finish quality.

Built for Safety & Durability: Fully enclosed moving parts and removable stainless‑steel tanks make the system safer to operate and easier to maintain and clean between jobs.

Cost‑Effective & Reliable: An affordable, reliable, and easy‑to‑use system for contractors getting into SIPP or expanding their pipe rehab capabilities.

Easy Setup & Clean‑Up: Compact footprint and design make setup fast, cleaning simple, and transport between job sites effortless, saving time and boosting productivity.

Price $49,504.23
Free Freight - 48 States

PipeCaster™ Pro Standard

Part # Pipe Diameter Hose Length Material Tanks Compressor Price

20001 2" - 6" * 300ft 7 gallon 10 gallon $49,504.23

*Up to 24" with upgrade

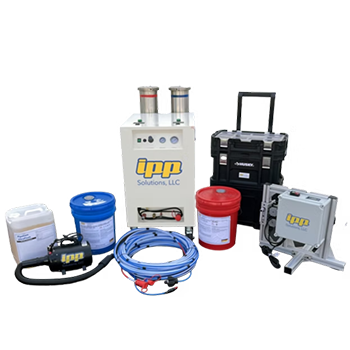

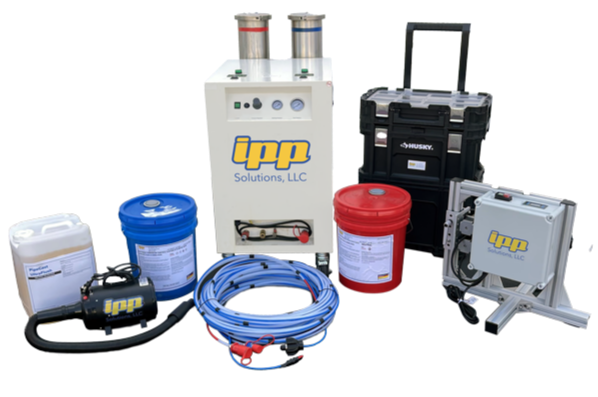

Starter kit includes:
2 Pneumatic Spray Motor

3 Set Material and Pneumatic Air Supply Hoses 100 ft/ea

1 Pulling Device

1 Remote Control

1 Toolbox with Tools

Spare Parts

Specifications:
Weight: Basic Pump 170 lbs. dry. (Extra equipment not included)

Dimensions: H 31.5" (3.0 gal tanks), 42", W 20", L 33"

Motor: CNC Motor with Gearbox

Pumps: Internal rotary gear pumps

Tanks: 2x 3.0 gal/ea Power: 110 V 5 A, 220 V version available

Wheels: 4", swivel wheels with brakes

Control: 2 dual port manifold, digital speed control.

Low voltage control line to applicator, programmable

Viscosity: approx. 50 – 2000 cps, depending on material

Flow rate: approx. 0.1 to >1 gallon per minute

Ratios: 1:1 by volume ratio standard, other ratios available
