PipeCaster Pro Gen 5 SIPP System

PipeCaster™ Pro Gen 5

PipeCaster™ Pro Gen 5

Handles pipe diameters from 2" to 24", making it perfect for everything from residential laterals to large-diameter municipal mains. See our Pipe Lining FAQs

Supports three mix ratios (1:1, 2:1, 3:1) for epoxies, polyurethanes, and polyureas – no need for multiple systems.

Dual Compressor Power: Includes both a quiet 2HP internal compressor and a 27-gallon external compressor with 200 PSI and 50ft air hose – perfect for long-distance or high-pressure jobs.

Oil-free and soundproof, engineered for clean, quiet operation even in residential or sensitive work zones.

Precision-Controlled Heating + Flow: Equipped with two 1000W digital flow-through heaters, ensuring smooth application and optimal resin consistency – even in colder climates.

Features an RPM meter with digital display for real-time control and monitoring of spray performance.

Fully Equipped for On-Site Efficiency: Includes multiple hose sets (6mm, 8mm, 10mm) and nylon highpressure hoses with quick connects for total adaptability.

Comes with both mini and maxi pneumatic spray motors, a resin primer tank, remote control, and pulling device – ready to go on day one.

Built for Safety & Control: Fully enclosed gear-driven pumps, removable stainless tanks, and EZ-Ride casters prioritize operator safety and mobility.

Optional heater bands, push-to-connect fittings, and compact footprint make this ideal for mobile or indoor setups.

Price $68,500.00
Free Freight - 48 States

PipeCaster™ Pro Gen 5

Part # Pipe Diameter Hose Length Material Tanks Compressor Price

20001-PipeCaster Pro Gen 5 2" - 24" up to 400ft 7 gallon 10 gallon $68,500.00

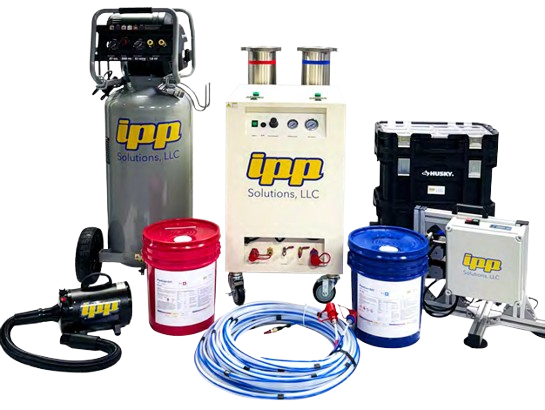

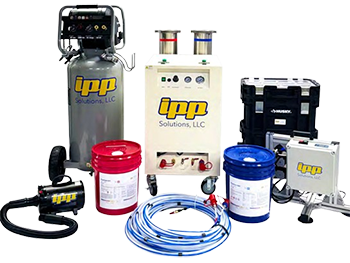

Starter kit includes:
1 Pneumatic Spray Motor (mini)

1 Pneumatic Spray Motor (maxi)

1 Pneumatic Spray Gun with 2-1/2 gallon pressure primer resin tank including 100ft of hoses 8mm

4 Set Material and Pneumatic Air Supply Hoses 100 ft/ea

1 Set Nylon high pressure hoses with quick connects 8mm 100 feet

1 Set Nylon high pressure hoses with quick connects 10mm 100 feet

1 Remote Control

1 Pulling Device

1 Toolbox with Tools, spare parts and push to connect fittings

Specifications:
Oil free electrical air compressor with soundproof cabinet.

Internal compressor with 2HP motor and 10gl Steel Tank

External compressor 27 Gallon, 200 PSI High-Performance with 50-foot air hose

Weight: Basic Pump 170 lbs. dry. Extra equipment not included.

Dimensions: Height 31.5" (3 gal tanks), 42" | Width: 20" | Length: 33"

Motor: CNC motor with Gearbox

Pumps: Internal rotary gear pumps Tanks: 7 gallon / each

Power: 110 V 5 A, 220 V version available

Heater: 2 integrated flowthrough heater 1000W /110V with digital controller

Meter: RPM Meter with digital display

Wheels: 4", swivel wheels with brakes

Control: 2 dual port manifold, digital speed control. Low voltage control line to applicator - programmable

Viscosity: approx. 50 – 2000 cps, depending on material.

Flow Rate: approx. 0.1 to >1 gallon per minute

Ratios: 1:1 by volume ratio standard, other ratios available
