Zoeller 912 Simplex 24 x 24 Sewage Package with BN266

Zoeller 912 Simplex 24" x 24" Sewage Package with BN266

Zoeller 912 Simplex 24" x 24" Sewage Package with BN266

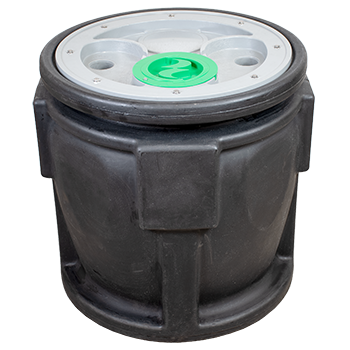

The Model 912 with the Model BN266 is an economical 24" x 24" preassembled sewage ejector system ideal for those looking to install a pre-plumbed, job ready system. This package ships complete with the Model BN266, a 1/2 HP, 115 V sewage pump. This package also ships with a clear construction cover and a twist lock observation port for inspections. Designed for burial flush-to-grade, the access cover is the only part that is visible after installation.
Features and Benefits:

Preassembled sewage ejector package for a job ready, fast, and easy install

Package is pre-plumbed with our popular Model 266 Sewage Pump with a piggyback float switch on a float tree for easy inspection and maintenance

24" x 24" polyethylene cover and basin with a 4" inlet, 2" vent, 2" discharge, and twist lock observation port

As with all Zoeller pumps, the Model 266 is 100% Factory Tested

The Model 266 sewage pump is built with a cast iron base and engineered plastic vortex impeller capable of handling 2" spherical solids reducing the chance of clogs and downtime

The pump's 115 V electrical cord seal is sealed in the cover

Can be installed outdoors with a Riser (10-5157)

The single piggyback pump switch is installed 180° from the 4" inlet to prevent the float from being affected by the inflow of raw sewage

The discharge pipe is plumbed with a pre-drilled 3/16" weep hole to prevent the pump from becoming air-locked

The polyethylene cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor

The clear construction cover can be removed once concrete is poured and finished

3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind

Specifications:

Pump Model in Basin: BN266

Vent Size: 2"

Basin Size: 24" x 24"

Basin Type: Poly Molded

Discharge: 2" NPT, Top

Solids Handling: 2" (50 mm) spherical solids

912 Systems, FM3467
Pre installation Checklist, 912, 915 systems, FM3291

Price $675.75

Free Freight - 48 States

Zoeller 912 Simplex 24" x 24" Sewage Package with BN266

Model Description Price

# 912-1144 Zoeller 912 Simplex 24" x 24" Sewage Package with BN266 $675.75

Our Model 912 is a preassembled sewage ejector package that comes with all of the key components required for installation. It is ideal for those looking to install a job ready sewage ejector system. Purchasing a job ready package reduces installation errors while minimizing cost.

The Model 912 sewage ejector package is designed for burial flush-to-grade. The access cover is the only part that is visible after installation.

The package comes preassembled in an 24" x 24" polyethylene basin. It includes our Model 266 sewage pump with a piggyback switch on a float tree for easy inspection and maintenance. The Model 266 is a 1/2 HP pump. The vortex impeller design of the Model 266 allows the pump to pass 2" spherical solids limiting the potential for clogging and unwanted downtime.

The basin comes complete with a 2" PVC discharge pipe that includes a predrilled 3/16" weep hole to prevent the pump from becoming airlocked. The basin's cover includes a cord seal for the pump's electrical cord along with a predrilled 2" vent hole. Additionally, the cover includes a twist-to-lock observation port for inspections and float access. The basin also ships with a clear construction cover to protect the basin lid while doing finish work around the basin cover. The cover is sealed in place prior to shipment. The pre-plumbed 4" inlet hub makes for a quick connection to the main sewage line.

Each basin is filled with environmentally friendly packing peanuts prior to shipment to ensure things remain in place during transit. The packing material is water soluble, so it will disappear on the first use.

Job ready, fast, and easy installation!
