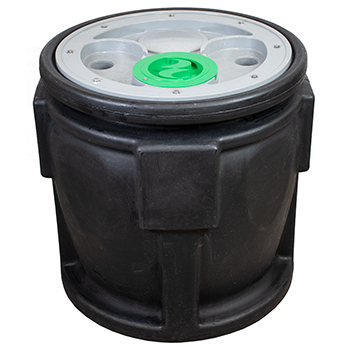

Zoeller 915 Simplex 24" x 24" Grinder Package with BN807

Zoeller 915 Simplex 24" x 24" Grinder Package with BN807

The Model 915 with the Model 807 grinder pump is an economical 24" x 24" preassembled sewage ejector system ideal for those looking to install a pre-plumbed, job ready system. This package ships complete with the Model BN807, a 1 HP, 115 V grinder pump designed for residential use. This package also ships with a clear construction cover and a twist lock observation port for inspections. Designed for burial flush-to-grade, the access cover is the only part that is visible after installation.
Features and Benefits:

Preassembled sewage ejector package with a grinder pump for a job ready, fast, and easy install

Package is pre-plumbed with our Model 807 a nonautomatic 1 HP grinder pump with a piggyback float switch

24" x 24" polyethylene cover and basin with a 4" inlet, 2" vent, 2""discharge, and twist lock observation port

The Model 807 is 100% Factory Tested

The Model 807 grinder pump cuts solids into a slurry using the industry proven "scissor like" Tri-Slice ® cutter technology that includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8"

The pump includes a powder-coated epoxy finish which provides corrosion-resistance and extends the pump's life in harsh sewage environments

The pump's 115 V electrical cord seal is sealed in the cover

Pump switch installed 180° from the 4" inlet to prevent the float from being affected by the inflow of raw sewage

Discharge pipe is plumbed with a pre-drilled 3/16" weep hole to prevent the pump from becoming air locked

The polyethylene cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor

The clear construction cover can be removed once the concrete is poured and finished

3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind

Specifications:

Pump Model in Basin: BN807

Vent Size: 2"

Discharge: 2" NPT, Top

Basin Size: 24" x 24"

Basin Type: Poly Molded

Solids Handling: Slurry

Sales Sheet, 915 Grinder Package, FM2953

Pre installation Checklist, 912, 915 systems, FM3291

Technical Data, Model 915, FM2795: 60 Hz

Price $1,616.25

Free Freight - 48 States

Zoeller 915 Simplex 24" x 24" Grinder Package with BN807

Model Description Price

# 915-0088 Zoeller 915 Simplex 24" x 24" Grinder Package with BN807 $1,616.25

Our Model 915 is a preassembled grinder pump package that comes with all of the key components required for installation. It is ideal for those looking to install a job ready sewage ejector system. Purchasing a job ready package reduces installation errors while minimizing cost.

The Model 915 grinder pump package is designed for burial flush-to-grade. The access cover is the only part that is visible after installation.

The package comes preassembled in an 24" x 24" polyethylene structural foam (PSF) basin. It includes our Model 807 nonautomatic grinder pump with a piggyback float switch. The Model 807 is a 1 HP grinder pump. The grinder pump reduces solids to an 1/8" or less as they pass through the cutter and cutter plate. This allows for the use of a smaller line size during installation. This is often necessary in areas with shallow bedrock or hilly terrain.

The basin comes complete with an 1-1/4" PVC discharge pipe that includes a predrilled 3/16" weep hole to prevent the pump from becoming airlocked. The basin's cover includes a cord seal for the pump's electrical cord along with a predrilled 2" vent hole. Additionally, the cover includes a twist-to-lock observation port for inspections and float access. The basin also ships with a clear construction cover to protect the basin lid while doing finish work around the basin cover. The cover is sealed in place prior to shipment. The pre-plumbed 4" inlet hub makes for a quick connection to the main sewage line.

Job ready, fast, and easy installation!
