Zoeller 922 Simplex 30" x 48" Grinder Package with WDH820

Zoeller 922 Simplex 30" x 48" Grinder Package with WDH820

This On the Shelf prepackaged basin assembly is everything you need to install your whole system as one item. This includes a Model WDH820 Grinder Pump, 30" x 48" basin assembly, alarm panel, and float switches.
Features and Benefits:

30" x 48" Grinder Package System

Package includes an A-Pak alarm

Preassembled at the factory to make installation easier and quicker

Primary Pump: WDH820, 200-230 Volt, 1 Phase, 20' Cord

Includes model WDH820 grinder pump, 30" x 48" basin assembly, alarm panel and float switches

Discharge depth at 12" and a cord length of 20'

Pump and discharge piping are 100% factory tested for leaks

3-year limited warranty on pump, and 1-year limited warranty on rest of system: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind

Specifications:

Package Configuration: Simplex

Pump Model in Basin: WDH820

Voltage: 200-230

Phase: 1

AMP: 13.7

Cord Length: 20' (6 m)

Basin Size: 30" x 48"

Basin Type: Fiberglass

Cover: Fiberglass – Solid

Discharge: 2" at 12" down from cover

Catalog Sheet, 922 Prepackaged Systems, FM2112

Catalog, Zoeller Pump Company Pumps and Systems, FM0532

Sales Sheet, 922 Package Systems, FM3496

Price $4,921.50

Free Freight - 48 States

Zoeller 922 Simplex 30" x 48" Grinder Package with WDH820

Model Description Price

# 922-0096 Zoeller 922 Simplex 30" x 48" Grinder Package with WDH820 $4,921.50

Our On the Shelf prepackaged basin assembly is everything you need to install your whole system as one item. This includes a model WDH820 grinder pump, 30" x 48" basin assembly, alarm panel, and float switches.

Solids are cut into a slurry using the industry proven "scissor like" Tri-Slice ® cutter technology. This includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8". The 200-230 Volt, 2 HP, Model 820 utilizes a vortex impeller.

The WDH820, is a fully automatic float-operated grinder pump with a wide-angle float switch hardwired directly into the pump allowing it to turn on when called upon. The Model 820 is constructed with a cast iron body, enabling it to withstand the most demanding sewage ejector applications. The pump's identification tag, handle, and hardware are made of high-quality stainless steel preventing rust and corrosion. Everything about the pump is designed in a way that allows it to hold up in the toughest sewage conditions.

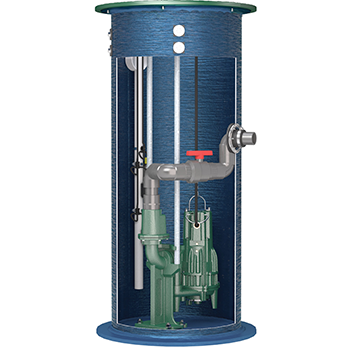

This 30" x 48" fiberglass basin assembly is job ready and includes Zoeller's Z-Rail system. This makes it quick to install and prevents the need to enter into a confined space. Installed inside the basin is a ball and check valve, 2" discharge plumbing at 12" down from the solid fiberglass cover that is rated for 300 PSF. Shipped loose for field install is a 4" inlet pipe seal and (2) 2" pipe seals for vent and conduit. All pipe seal openings are to be drilled at the jobsite for accurate placement. The anti-flotation device (AFD) is built into the fiberglass wall and helps anchor the basin into the ground. This is pivotal in areas of high-water tables or to prevent ground pressures to push the basin out of the ground.

The NEMA 4X A-Pak alarm will provide an audible and visual warning if the water level presents the danger of overflow. This gives you time to act and protect your property from flooding. In the event of high water, red LED lights will illuminate around the periphery of the enclosure and a buzzer will sound notifying you of a potential problem. The audible buzzer is rated at 85 decibels at 10" so it is recognizable even when installed outside the home. The A-Pak also includes a Silence/Reset/Test toggle switch that allows you to manually initiate important functions. The variable level control switch is normally open when hanging vertically above the liquid level. When the water level rises and the switch is raised a few degrees above the horizontal position the switch closes, completing the circuit to the alarm. The float that encases the mechanical switch is constructed of durable PVC/polypropylene.
