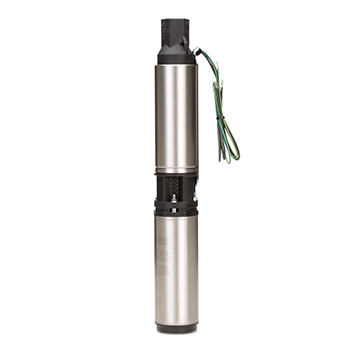

Zoeller 450 Submersible Well Pump

Zoeller 450 Submersible Well Pump - 11 GPM

450 Submersible Well Pump - 11 GPM

Our turbine well pumps are backed by 100% wet testing. We have tested this series to resist up to 3,500 lbs of pull force, it exemplifies strength and resilience. Proudly paired with our 4-inch submersible motor, it ensures seamless integration for optimized functionality. Designed with the contractor in mind, it prioritizes practicality and efficiency at every turn.
Differences between these three models:

The primary differences are in voltage and wiring configuration.

2-wire models no separate control box needed.

3-wire models require a control box for starting/capacitor functions.

Specifications:

Stage: 8

Hertz: 60 Hz

GPM: 11

Catalog

Starting at $1,387.00

Free Freight - 48 States

Zoeller 450 Submersible Well Pump - 11 GPM

Model Description Price

# 450-0009 3 wire, 230 V, 5A, 1/2 HP (control box required) $1,387.00

# 450-0011 2 wire, 230 V, 5A, 3/4 HP $1,532.00

# 450-0010 2 wire, 115 V, 10A, 1/2 HP $1,563.00

Submersible pumps are rated by the number of gallons per minute to the well head from various water level depths. Models rated at 7 GPM (26.5 LPM) are for small homes, cottages and light water usage demands, whereas the 11 and 19 GPM models are for the average residential size home and family. 1/2 thru 1 HP motors used on Zoeller submersible pumps are designed to meet NEMA standards. 1/2 HP models are available in either 115 or 230 volt. The 3/4 and 1 HP models are available in 230 volt only. All models are available with either a 2 or 3 wire connection plus ground wire. 3 wire models require a control box.
