Zoeller 451 Submersible Well Pump

Zoeller 451 Submersible Well Pump

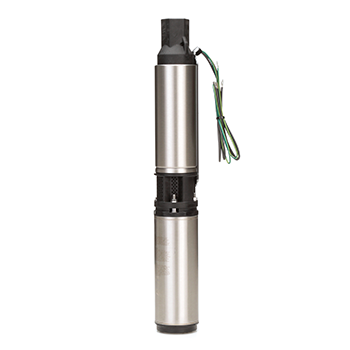

451 Submersible Well Pump

Our turbine well pumps are backed by 100% wet testing. We have tested this series to resist up to 3,500 lbs of pull force, it exemplifies strength and resilience. Proudly paired with our 4 inch submersible motor, it ensures seamless integration for optimized functionality. Designed with the contractor in mind, it prioritizes practicality and efficiency at every turn.
Differences between these three models:

The primary differences are in stages, GPM, and wiring configuration.

2-wire models no separate control box needed.

3-wire models require a control box for starting/capacitor functions.

Specifications:

Voltage: 230 V

Horsepower: 3/4 HP

Stage: 12 or 14

Motor Type: 2 Wire or 3 Wire Plus Ground

Hertz: 60 Hz

Amps: 6.8

GPM: 7 or 11

Control Panel Required: Yes or No

Catalog

Starting at $1,491.00

Free Freight - 48 States

Zoeller 451 Submersible Well Pump

Model Description Price

# 451-0006 3 wire, 12 stage,11 GPM, 230 V (control panel required) $1,491.00

# 451-0005 2 wire, 14 stage, 7 GPM, 230 V $1,594.00

# 451-0007 2 wire, 12 stage, 11 GPM, 230 V $1,677.00

Submersible pumps are rated by the number of gallons per minute to the well head from various water level depths. Models rated at 7 GPM (26.5 LPM) are for small homes, cottages and light water usage demands, whereas the 11 and 19 GPM models are for the average residential size home and family. 1/2 thru 1 HP motors used on Zoeller submersible pumps are designed to meet NEMA standards. 1/2 HP models are available in either 115 or 230 volt. The 3/4 and 1 HP models are available in 230 volt only. All models are available with either a 2 or 3 wire connection plus ground wire. 3 wire models require a control box.

Return to Submersible Well Pumps

Not sure which Zoeller Submersible Well Pump is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
