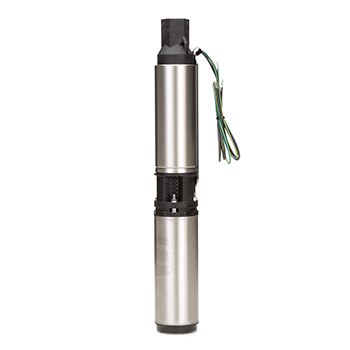

452 Submersible Well Pump

Our turbine well pumps are backed by 100% wet testing. We have tested this series to resist up to 3,500 lbs of pull force, it exemplifies strength and resilience. Proudly paired with our 4 inch submersible motor, it ensures seamless integration for optimized functionality. Designed with the contractor in mind, it prioritizes practicality and efficiency at every turn.
Features and Benefits:

1 1/4" cast iron discharge head prevents cross-threading and cracking in the well

Upgraded full staging for improved performance

Floating impeller stack easily passes debris and prevents damage

Integrated spider bearing for tighter pump shaft security

Well diameter: 4" (10 cm) minimum

1 year limited warranty

Specifications:

Voltage: 230 V

Horsepower: 1 HP

Stage: 15 or 9

Motor Type: 2 wire plus ground

Hertz: 60 Hz

Amps: 8.2

GPM: 11 or 19

Control Panel Required: No

Catalog

Starting at $1,656.00

Free Freight - 48 States

Zoeller 452 Submersible Well Pump

Model Description Price

# 452-0006 2 wire, 15 stage, 11 GPM, 230 V $1,656.00

# 452-0008 2 wire, 9 stage, 19 GPM, 230 V $1,719.00

Submersible pumps are rated by the number of gallons per minute to the well head from various water level depths. Models rated at 7 GPM (26.5 LPM) are for small homes, cottages and light water usage demands, whereas the 11 and 19 GPM models are for the average residential size home and family. 1/2 thru 1 HP motors used on Zoeller submersible pumps are designed to meet NEMA standards. 1/2 HP models are available in either 115 or 230 volt. The 3/4 and 1 HP models are available in 230 volt only. All models are available with either a 2 or 3 wire connection plus ground wire. 3 wire models require a control box.
