Zoeller M803 Grinder Pump

Zoeller M803 Grinder Pump

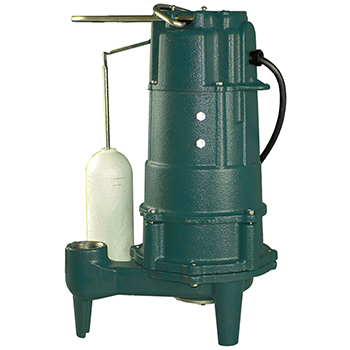

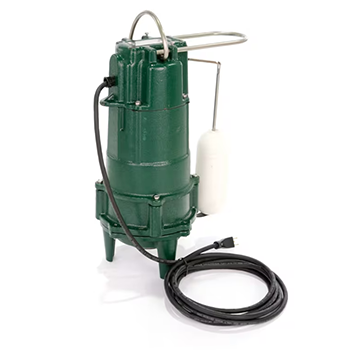

M803 Grinder Pump with 15' Cord

The Shark Series® 1/2 HP Model M803 automatic Grinder Pump is designed to remove sewage from sewage ejector applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.
Features and Benefits:

Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating

Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation.

Proven Tri-Slice® cutter technology: Three independent cutting channels provide over 250,000 cuts per minute.

Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time.

Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times

Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments.

Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump.

100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it.

Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product.

Specifications:

Horsepower: 1/2 HP

Voltage: 115 V

Amps: 7.0

RPM: 3400

Discharge: 1-1/4" NPT

Solids Handling: Slurry

On/Off Points: 13" (33 cm) / 5-3/4" (14.6 cm)

Impeller Type: Vortex

Impeller Material: Engineered Plastic

Cord Length: 15' (5 m)

Sales Sheet
Sales Sheet, Commercial

Installation Instructions
Installation Instructions, Capacitor

Technical Data Sheet

Parts List

Price $1,549.00

Free Freight - 48 States

Zoeller M803 Grinder Pump

Model Description Price

# 803-0001 M803 Grinder Pump with 15' Cord $1,549.00

The Shark Series® Model N803 Grinder Pump with a is designed to remove raw sewage in sewage ejector applications. The professional-grade, 1/2 HP 803 is a time-tested and reliable grinder pump. The N803 is a nonautomatic pump that requires piggyback float switch or control panel to set the pumping level. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.

The industry proven "scissor like" Tri-Slice® cutter technology includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8″. The vortex impeller passed the slurry through the pump housing. This combination of features lessens the chance of clogging and downtime.

The Model 803's motor housing, pump housing, and base are each constructed of cast iron. The pump's identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 803 is able to withstand the most demanding sewage ejector applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.
